使用上の注意
以下はスパナの破損や折れを防ぐと共に、怪我や事故を未然に防止する為のものです。
注意点や正しい使い方をお守り頂けない場合、製品の保証のみならず万が一怪我をされても当社は一切の責任を負わず、いかなる保証も致しません。悪しからずご了承下さい。
※当社六角棒スパナの保証トルク値をトルクの比較表に掲載しています。合わせてご覧下さい。
商品全般の注意点
Do not use it in a prying manner.
Use a hex wrench that fits the screw hole.
Do not connect pipes or box wrenches other than those supplied with the product.
Do not hit the wrench with a hammer or apply impact torque. Excessive use may shorten the life of the product and cause damage.
Do not use it in a prying manner.
Never use a wrench that has been deformed.
A wrench that has been twisted or bent will lose strength due to metal fatigue even after returning to its original shape.
Do not put your weight on it to tighten it. It is dangerous because the wrench may come off, or the bolt may break or the wrench may break due to metal fatigue.
A thin wrench may break with hand force, and excessive use is dangerous.
Be careful not to apply too much force to products with a tapered head or a ball point that has a narrow neck diameter.
Wear safety glasses.
(When extreme use is unavoidable)
Please remove dust from the bolt hole before use. Chips, etc. interfere with the wrench fitting and shorten the life of bolts and wrenches.
Do not use on worn bolt holes.
The wrench may slip, which is dangerous.
Do not process the tip and use it. When heat is applied, the material deteriorates, causing wear and damage.
Beware of electric shock
The wrench is metal. Using it near electricity will give you an electric shock.
Torx screws have shallow screw holes, so use a straight wrench. This is dangerous as it may cause slip damage.
Use a Torx screw wrench that fits the screw hole.
Tamper-resistant screws are used in places that must not be loosened in order to prevent accidents such as gas leaks, maintenance, and maintenance of equipment. Therefore, please do not use it carelessly and be sure to check the safety. We are not responsible for any accidents that may occur during use.
Some of the blister packs and mounts have sharp corners, so be careful not to get hurt when removing the staples.
Do not use sockets without O-rings and pins with impact wrenches.

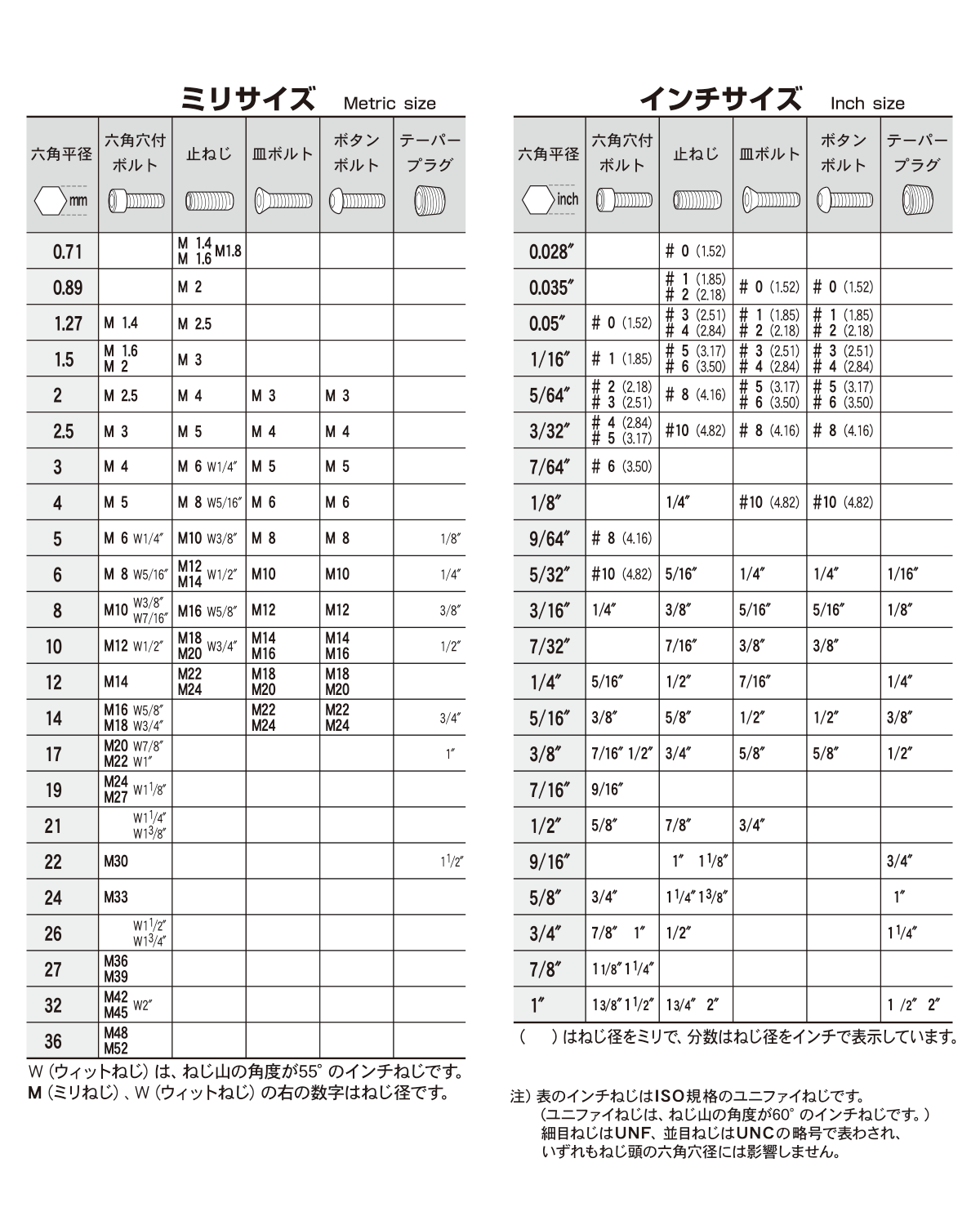

ねじ適合表
適切な保証トルク値内で御使用下さい。
●やみくもに過大なトルクでねじを締め付けても効果はありません。かえってねじがのびてしまったり、被締め
付け物座面部の破損が大きくなり、時間の経過とともにゆるみの原因となったりします。
●バイト刃の取付けねじ等は、使用後の熱膨張で締め付け時より弛緩時の方が大きな力を必要とします。
保証トルク値を越えて御使用になるとレンチの折れや重大な怪我のもとになりますのでご注意下さい。
六角
ねじ径φ
1/8″＝3.18mm
1/4″＝6.35mm
5/16″＝7.94mm
3/8″＝9.53mm
7/16″＝11.11mm
1/2″＝12.70mm
9/16″＝14.29mm
5/8″＝15.88mm
3/4″＝19.05mm
7/8″＝22.23mm
1″＝25.4mm
